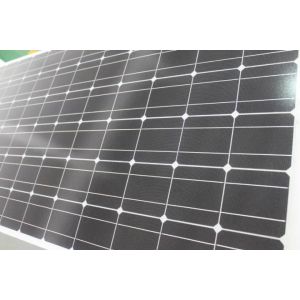

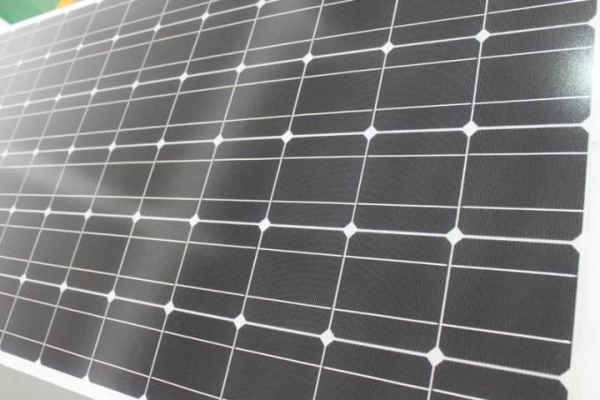

Name: 230w monocrystalline polycrystalline solar module
Brand: ZDNY
Price: 1 USD

Place of Origin : China

Brand Name : ZDNY

Certification : CE, ISO9001:2000, ROHS, TUV, UL

Price : US $ 0.5 - 0.65/ Watt

Payment Terms : TT, L/C

Contact Now

Specifications
1. High cell efficiency (17.5%)
2.Unique frame design, easy installation
3.25 year

Characteristics		ZDNY-230P54
Max.Power(Pmax)		230Wp
Optimum Operating Voltage(Vm)		28.33V
Optimum Operating Current(Im)		8.12A
Open-circuit Voltage(Voc)		35.06 V
Short-circuit Current(Isc)		8.52A
Cell Efficiency		17.5%
Solar Cell		Poly-crystalline 156*156mm
Output Tolerance(Pmax)		0~+3%
Number of cells		54 cells in series
Module Dimension		148299240mm
Weight		18kg
Max.System Voltage		1000V(TUV)/600V(UL)
Max.Series Fuse Rating		15A
Output Cable		PV 4mm²
Cable Length		90cm±5
Number of bypass diodes		3
Temperature cycling range		(-40~85°C)
NOTC		47°C
Temperature coefficients of Isc		+(0.053±0.01)%/K
Temperature coefficients of Voc		-(0.35±0.001)%/K
Temperature coefficients of Pmax		-(0.40±0.05)%/K
Load Capacity		285pcs/20'GP
		756pcs/40'HQ
